PRODUCT DETAILS

1.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides;

2.The load-sensing steering system is adopted to further improve the working efficiency;

3.Improve the working environment of the main bearing and connecting rod bearing components, prolong the service life of the engine, and reduce the noise of the engine.

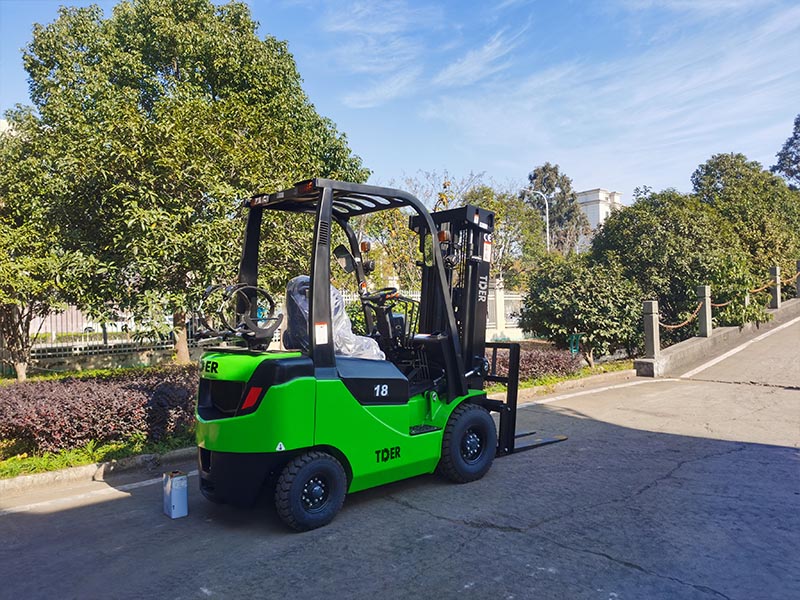

Model			FG18
Power Type			LPG & Gasoline
Rated Capacity		kg	1800
Load Centre		mm	500
Lift Height		mm	3000
Mast Tilt Angle	F/R	Deg	6°/12°
Fork Overhang (Wheel center to fork face)		mm	410
Ground Clearance（Bottom of mast）		mm	110
Length to face of fork(Without fork)		mm	2285
Overall Width		mm	1086
Mast Lowered Height		mm	1995
Turning Radius (outside)		mm	2055
Speed Travel (Full load)		km/h	15
Tyre	Front	mm	6.50-10-12PR
Tyre	Rear	mm	5.00-8-10PR
Wheelbase		mm	1400
Battery Voltage/Capacity		V/Ah	12/80
Engine			K21
			GCT (NISSAN)
		kw	31.2/2250
		N·m	143.7/1600
			4
		mm	89×83
		cc	2065
		L	45

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
